Wash Booths
MAXJET CUSTOM WASH BAY SIZES TO MEET YOUR NEEDS
BASE MODEL FEATURES:
- All steel construction built to customer specifications– mild steel or stainless
- Holding tank with sloping floor to 2” drain.
- 50 lbs. per sq. ft. stainless steel flooring grate, removable for sludge clean out.
- Removal step for operator to enter wash area.
MAXJET CUSTOM WASH BAYS
SIZES TO MEET YOUR NEEDS
CUSTOM OPTIONS AND ADD ON’S MAKE THIS THE MOST VERSATILE ON THE MARKET

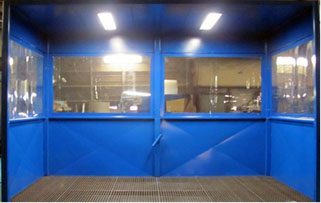

LIGHTED CEILING and WINDOWS HOSE REELS FOR HIGH VOLUME OR HIGH PRESSURE
LOCKABLE SWING OUT SPLASH CURTAINS
1000 PSI PUMP PLUS 26 GPM SEALLESS FLUID FILTERS THROUGH 4 INDIVIDUAL BAGS
18KW HEATS SOLUTION – EASY ACCESS FOR CLEAN OUT – 2’ DRAINS – OIL SKIMMER
ADDITIONAL OPTIONS
- Removable sides
- Dive on ramps – https://youtu.be/5JZMeOXssoQ
- High weight capacity
- Large custom sizes built in two sections to ship
- Gas heat
- 230 V 1 or 3 phase or 460 V 3 phase
- Can use existing pressure washers
Use existing pressure washer or built in. Recycles fluid saving chemical and reduces discharge.
Custom Sizes Available.
- Heated Recirculating
- Solution Filtration HD pump
- Extra Load capacity to 10,000 lbs

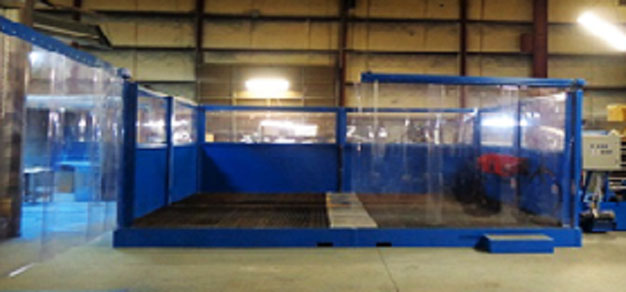

See large booth with drive on loading
SB-2 BENCH TOP WASH BAY
- GENERAL SPECIFICATIONS
- Wash Bay With Heated Recirculated Tank
- 48 ”W 96” L approx. wash area
- Approx. 86 inches tall ( floor to top of wall)
- Approx. 45” from grating to top of wall
- Hydra-cell pump 1000PSI @ 3gpm see details
- High pressure hose with trigger gun spray
- Spring wound wash timer 0-60-minute
- 0-12-hour heat timer
- Gravity Bag Filtration system, two
- Heated tank 4.5 kW (9kw on 460V models) 230 V 1 ph or 230 V 3 208 3 ph specify when ordering.
- Electrical Control Panel mounted on side outside wall
Wash Bay with HP Spray wand, heated tank, and bag filtration
System Inclusions
HYDROCELL HIGH PRESSURE PUMPS FOR LONG SERVICE LIFE.
1,000 PSI@ 3 gpm Hydrocell sealless pump – We use these pumps versus piston style for durability. These pumps can pump particles in suspension.
Dual drop in bag filters. All fluid gravity flows thru two filters into heated tank
Custom Sizes Available
MAXJET – SB-1
Large parts washer station features both wash and rinse cycles
Overall specifications
- Outside dimensions 85”X 50”X74”
- Wash bay area 84”X48”X54”
- Heated Recirculation Filtrations
- Control panel with manual switches for heat and pump
- Overhead adjustable spray nozzles
- High/low pressure spray guns
- HD grate holds up to 1200 lbs evenly distributed
- Pressure and flow control with 1\2” ball valve
- 1500 W Adjustable with dial thermostat
Built in filtration system – Centrifugal pumps through re-useable filtration basin employing media composed of industrial metal mesh and polyurethane particles.
DSB system features 1 hp 15 gpm pump through overhead or high pressure spray wand
Wash water may be recirculated or directed to drain.
Custom Spray Booths
Heavy duty construction in mild or stainless steel. Use with existing pressure washer or optional custom built in pump.
CUSTOM OPTIONS
Three Side Open Front Models without Ceiling
- 4’ W X 6’ L X 7’ Tall
- 6’ W X 10’L X 7’ Tall
- 8’W X 10’L X 7’ Tall
Custom Sizes Available.
Heated Recirculating Solution Filtration HD pump Extra Load capacity to 10,000 lbs
We built this unit with many features and custom option. Design can include ramp and extra
capacity to allow fork lift to drive on to load and unload. Choose mild or stainless construction.
Heated wash and rinse cycles along with filtration and excellent lighting are just some of the features.
See in action spray booth https://www.youtube.com/watch?v=5pFsGBIE29g
