Ultrasonic Tank Solutions
Engineered and designed in the U.S.A. Temperature-Regulated Heating Element for Best Cleaning Results
INDUSTRIAL GRADE TABLE TOP ULTRASONIC MODELS
Heated Standard Sizes include Basket, Lid, and Drain Faucet
Tank Sizes
Tank Dimensions:
| LXWXH | 12″×6″×6″ | 12″×9″x6″ | 12″×11″×6″ | 2.5″x11″x10″ | 18.5″×11″×8″ | 19.5″×11″×10″ |
| Gallons: | 1.6 | 3.5 | 4 | 5.3 | 7.5 | 10 |
All Features:
- Free Parts’ Basket
- Engineered and designed in the U.S.A. Temperature-Regulated Heating Element for Best Cleaning Results
- Digital Ultrasonic Timer
- Very Reliable Industrial-Grade Transducer
- 120 V power
- Stainless Steel
Larger Bench Top Models
Model: MJ 10
Features:
- Free Parts’ Basket
- Industrial grade model
- Side Handles for easy handling
- Heating element for best cleaning results
- Heating element can stay on all day even if ultrasonic power is off
- Stamina XP Series
- Digital Ultrasonic Timer
- Industrial-Grade Transducer for best reliability
- Drain Faucet for spill-proof draining
Specifications:
- Ultrasonic Frequency: 40,000 Hz
- Adjustable feet provide stabilization and prevent rocking
- Quickly degases in 5 minutes
- Tank Material: Stainless Steel
- Tank Capacity: 36 Liters (10 Gallons)
- Tank Inside Dimensions: 19″x12″x16″ (LxWxH)
- Power Supply AC 100 ~ 120V, 50 / 60Hz
- Power 1220 W (720 Ultrasonic and 500 Heating)
- Weight: 65 Lbs
- Warranty: 2 Years
MJ18
Digital Heated Ultrasonic Cleaner Features: 18 Gallon tank
- Industrial grade model
- Free basket
- Free lid
- Heating element for best cleaning results
- Heating element can stay on all day even if ultrasonic power is off
- Digital Ultrasonic Timer
- Industrial-Grade Transducer for best reliability
- Drain Faucet for spill-proof draining
Free Basket
Specifications:
- Ultrasonic Frequency: 40,000 HZ
- Adjustable feet provide stabilization and prevent rocking
- Tank Material: Stainless Steel
- Tank Capacity: 46 Liters (18 Gallons)
- Tank Inside Dimensions: 24″x 19″x 9″ (LxWxH)
- Power Supply AC 100 ~ 120V, 50 / 60Hz
- Power 2400 W (1200 Ultrasonic and 1200 Heating)
- Weight: 180 Lb
- Warranty: 2 Years

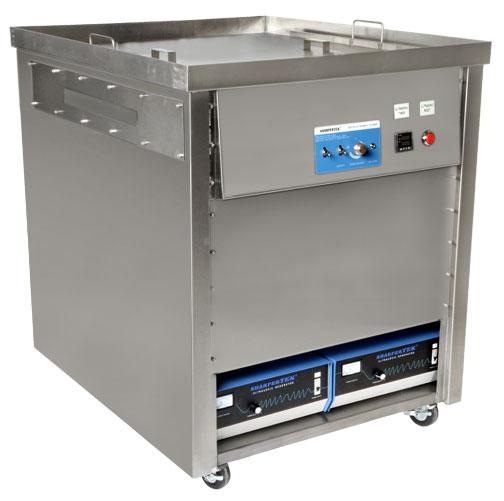

MAXJET INDUSTRIAL CONSOLE ULTRASONIC PARTS WASHERS
STANDARD MODELS
Tank Dimensions:
| LXWXH | 19″×19″×20″ | 26″×18″×20″ | 48″×23″×20″ | 32″X32″X24″ | 56″×26″×26″ | 56″×36″×28″ |
| Gallons: | 31 | 40 | 95 | 105 | 165 | 245 |
CUSTOM SIZES ARE AVAILABLE
Digital Heated Ultrasonic Cleaner
Parts Cleaner – Cleans Mechanical (Carburetor, injector, etc) and Manufacturing Equipment, Laboratory Equipment, Medical Equipment and much more!
Features:
- Forklift base for Easy Transportation
- Raised control panel
- Bottom Basket Support
- Industrial grade model
- Heating element for best cleaning results
- Heating element can stay on all day even if ultrasonic power is off
- Industrial-Grade Transducer for best reliability
- Drain Faucet for spill-proof draining
Options:
Filtration System: Stainless Pump, Stainless Filter Housing, and Weir Overflow (Note oil skimmer is additional cost. )
With this addition to our console style ultrasonic parts cleaners, the solution is pumped from the tank bottom through a filter. This in turn is reintroduced to the top surface of the water to push floating debris and oils into an overflow weir section of the tank. This prevent the clean parts from recontamination when removed from solution. An oil skimmer may be added to the weir for oil removable. See separate listing for oil skimmers.
• Turnkey PLC controlled with overfill protection and HMI interface with
programmable cleaning cycles
• Controls Filtration System: Stainless Pump & Stainless Filter Housing
• Auto Fill System with stainless steel inlet solenoid valve.
• 7 Day Programmable Cleaning Cycles!
• HMI controls would control cleaning parameters.
• Filtration System: Stainless Pump & Stainless Filter Housing.
• Daily Warm Up & Degas Programmable Cycles.
Weir over flow and Oil Skimmer

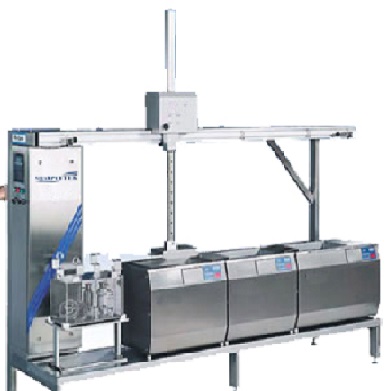

CUSTOM DESIGNED AUTOMATED MULTI TANK CLEANING
Multi-tank ultrasonic wash, rinse tanks, and a drying chamber, all of which are welded into a stainless steel table-top. The system is supported by a steel frame enclosure. Cleaning and drying is programmable to move baskets to the next stage tank as each cycle is completed.
Call us to discuss you specific need. 913-362-6131
All ultrasonic parts washer have a limited 2 year warranty
Call us today at 866-540-7575 for a no obligation assessment of your cleaning needs and to discuss the optimal cleaning configuration for your application. We can help you save time and money plus do the job better.
RECYCLING TANKS WITH FILTRATION SYSTEMS
Three Models
TFS 1
Heated Tank with filters with inlet for sump pump from pit ONLY. Includes ¾ “ connection for customer’s pressure washer. No pumps or reels included
Standard Recirculation Filtration Tank Systems Inclusions
- A customer supplied sump or trash pump will recirculate wash water to filter tank.
- ¾” connection on tank where customer connects their own pressure washer.
- Tank is approx. 48”x 60” approx. 150 gallons fill
- Bag filters are mounted in section of the tank. All wash water recirculates through the filters
- Heated Tank 15 kw with adjustable thermostat.
- O-12-hour timer for Heat
- Electrical – 230 V 1 or 3 ph or 460 V 3 ph
- Auto Water Fill from customers in house source
- Low water shut down
- Panther Tongue Oil Skimmer
- Dema Chemical Valve
OPTIONAL SYSTEMS WITH PUMPS
TFS 2 All items in TFS 1 plus
- 2.8 gpm 1000 psi pump with hose reel and wand.
TFS 3 All items in TFS ! and TFS 2 plus
- 3 Hp Sealless Pump -5 gpm @ 45 psi with hose reel and nozzle
Note – Customer is responsible for hook up to water line and piping of wash water to system.
Fob – Marshfield MO 65706 Warranty – 1 year old parts
