Immersion Parts Washers

Immersion cleaning exposes all surfaces of the part, including blind holes and small crevices, to the cleaning solution. By combining hands-off, total immersion cleaning, easy part load/unload, vertical lift platform agitation and optional turbo jet action parts are thoroughly cleaned automatically.  Complex parts that are stacked or nested are no problem.

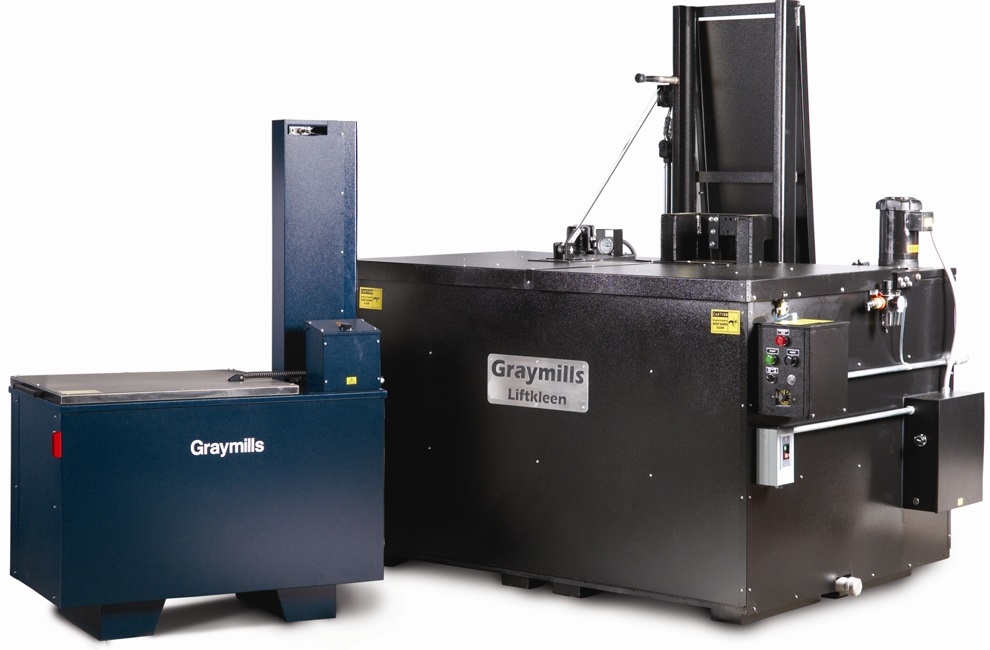

We are pleased to represent the complete Graymills line of immersion washers. Graymills has been an industry leader for over 75 years.

Listed below is a sampling of the units available. We offer both solvent and aqueous models.

Testing is available to determine the ability of the unit to clean your parts.



LK Series for Extra Capacity Loads

Model #		Overall Dimension (L x W x D)		Operating Fluid Capacity		Platform Dimensions (W x D)		Standard Lift Capacity – Weight
LKR36		51″ x 45″ x 76″		170 GAL		35-1/2″ x 24″		550
LKR48		64″ x 57″ x 81″		290 GAL		47-1/2″ x 36″		450
LKR60		76″ x 66″ x 81″		355 GAL		59-1/2″ x 36″		700
LKD60		76″ x 66″ x 96″		491 GAL		59-1/2″ x 36″		700
LKD72		88″ x 72″ x 96″		667 GAL		71-1/2″ x 42″		700
LKD84		100″ x 66″ x 96″		670 GAL		84″ x 36″		700

• High power pump for in-tank fluid agitation adds more turbulence to washing tank
• Drop-in Heaters and insulation for aqueous units
• Lift roller platform aids in loading and unloading parts
• Stainless steel tanks, lifting mechanisms, and racks to ensure long life of unit
• Oil Separator to remove oil from aqueous cleaning solution during the cleaning process
• Turbo-boost filtration system filters and extends life of cleaning solution
• Ultrasonic Models create powerful cavitation to effectively clean wide range of parts and configurations
• Rotating small parts basket

T Series

Have  a variety of sizes and options, including pump, agitation, ultrasonics, and automatic control of cleaning cycles, that make it the easiest-to-use, large size cleaner on the market. One touch control of the pneumatic air system and electronic controls turns multi-function operation into a simple step.

	Model #		Overall Dimensions (L x W x H)		Operating Fluid Capacity		Platform Dimensions (L x W)		Standard Lift Capacity – Weight
	TR2420		41-1/2″ x 24-1/2″ x 66″		47 GAL		22″ x 19″		150
	TR3626		53-1/2″ x 29-1/2″ x 75″		118 GAL		32″ x 24″		200

DESCRIPTION TL17 TLHS18





Economy

TL Series for solvent or aqueous





TL 17   Non Heated for Solvent                 Tl-18    Heated for Aqueous Solution



Immersion Space     (L x W x D) 17″ x 45″ x 20″             18″ x 47″ x 20″

Overall Dimensions  (L x W x H) 40″ x 56″ x 84″             40″ x 56″ x 84″

(lid open)

Liquid Capacity (gal)   150                                              150

Motor/Pump (Hp)        3/4                                               3/4

Gallons Per Hour        3000                                             3000

Voltage 115/230/460V                                                   115/230/460V

Hertz Phase 60/50-1 or 3 Ph                                         60/50-1 or 3 Ph

Heater for water-based

cleaning only 60 – 180oF (15 – 82oC) NA 9 kW





Standard Features for both models:

Large capacity air-operated lift platform handles up to 300 pounds.

Automatic lid opens and closes in conjunction with platform.

Flow-thru brush and pump allow for detail cleaning (TL17 only)

MIG welded steel construction, dye tested for 24 hours to ensure no leaks

Durable Epoxy/Polyester powder coated exterior finish

provides an attractive appearance for years

GFCI and Fusible Fire Link safety protection.

Additional features for heated models :

Stainless steel construction for corrosion resistance

Adjustable, thermostatically controlled heater to

maintain optimum cleaning temperatures up to 180°F (82°C)

Fully insulated tank and lid to prevent heat loss and

provide faster heat up to save money

Available Options and Accessories :

Agitation Pump for additional in-tank cleaning action

Filtration Package to maintain fluid cleanliness

Available Cycle Timer for repeatable control of wash sequence

Oil Skimmer (TLHS18 only) for continuous oil removal

Parts Basket matched to platform



Large Extra Heavy Duty Heated Immersion Washer



Large Extra Duty Heated Immersion Washer –



Heavy parts are cleaned with oscillation of the platform in the hot aqueous solution.

May be use with solvent or aqueous.  T he platform capacity is 1,000 lbs

Heated 300 gallon tank

Push Button Preset Wash Timer 7 Day Heat and Oil Skimmer Timer





Immersion Aqueous and Solvent Based Cleaning

1. Optional Turbo Boost Agitates and Filters Solution
2. Agitation Pump for additional in tank cleaning action
3. Oil skimmer for TL18
4. Parts Basket to Match Platform
5. Roller on Platform for Easy Loading from Cart

Call us today at 866-540-7575 for a no obligation assessment of your cleaning needs and to discuss the optimal cleaning configuration for your application. We can help you save time and money plus do the job better.
